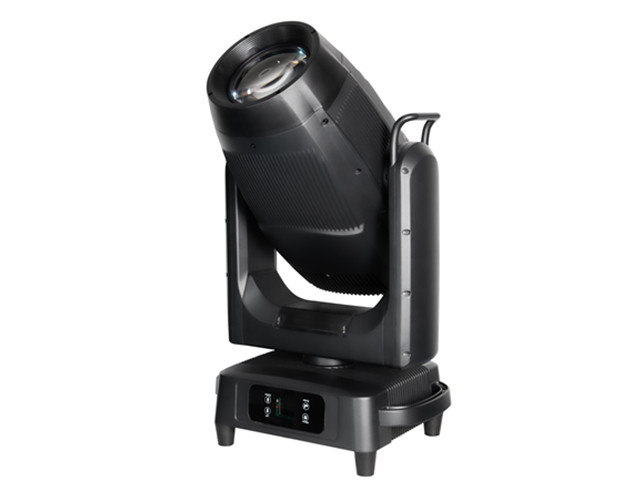

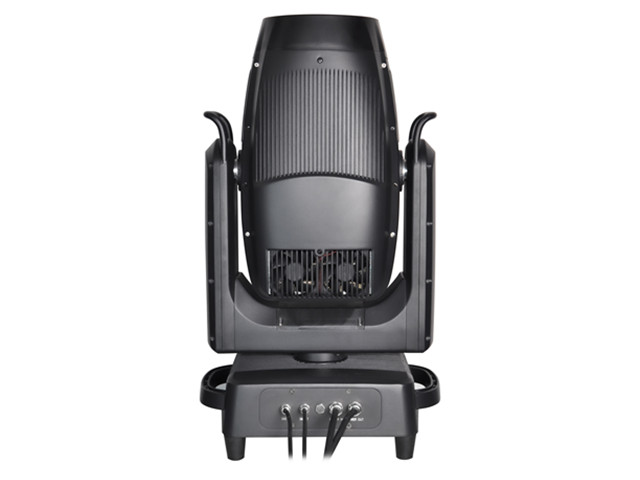

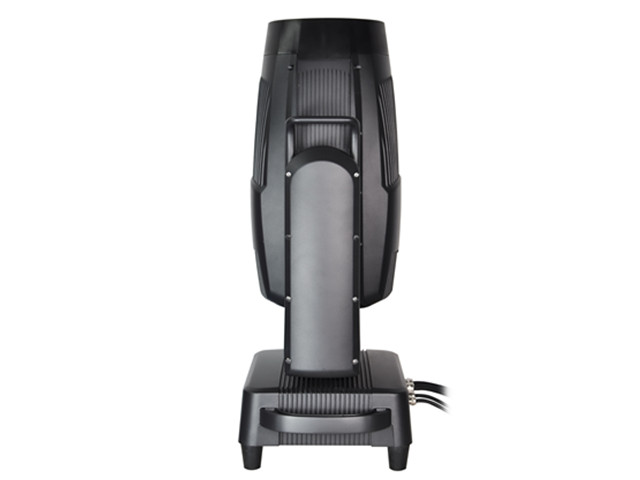

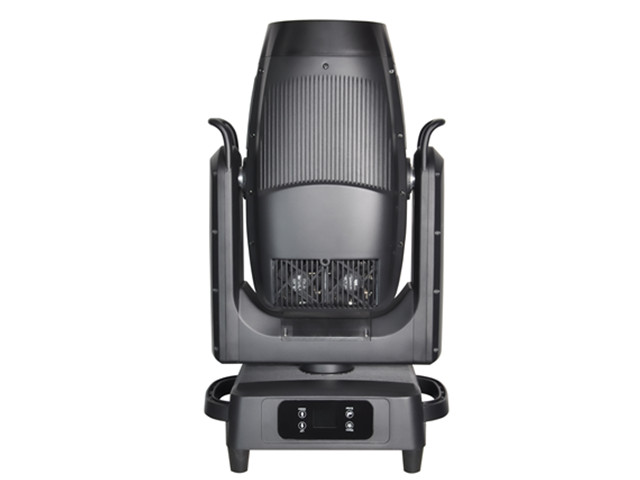

700W & 1000W LED Waterproof Profile Moving Head
- PID：YN-LP700IP
- Wechat：13435630187
- Phone: 13435630187
- Tel: 13435630187
- Email: business@yinuolight.com
- FEEDBACK
1. Model Number
| Version | Model | Description |
|---|---|---|
| 700W（700 瓦款） | YN-LP700IP | 600W LED Module, IP66 Waterproof, CMY + 4-Blade Framing |
| 1000W（1000 瓦款） | YN-LP1000IP | 850W LED Module, IP66 Waterproof, CMY + 4-Blade Framing |
2. Specifications
| Parameter | YN-LP700IP | YN-LP1000IP |
|---|---|---|
| Model | YN-LP700IP | YN-LP1000IP |
| Input Voltage | AC100–240V, 50/60Hz | AC100–240V, 50/60Hz |
| Power Consumption | 850W | 1150W |
| Light Source | 600W LED Module | 850W LED Module |
| LED Lifespan | 20,000 hours | 20,000 hours |
| Color Temperature | 6500K | 6500K |
| Front Lens Diameter | 130mm | 130mm |
| CRI | Standard Mode Ra > 70 / High-CRI Mode Ra > 90 | Standard Mode Ra > 70 / High-CRI Mode Ra > 90 |
| Signal Connector | 3-pin XLR / 5-pin XLR (optional) | 3-pin XLR / 5-pin XLR (optional) |
| Control Modes | DMX512, RDM, Auto Run, Master/Slave | DMX512, RDM, Auto Run, Master/Slave |
| DMX Channels | 34CH / 39CH / 56CH (selectable) | 34CH / 39CH / 56CH (selectable) |
| Display | 2.8" Touch LCD, EN/CN bilingual, 180° rotatable | 2.8" Touch LCD, EN/CN bilingual, 180° rotatable |
| Color Wheel | 6 fixed colors + white | 6 fixed colors + white |
| Color Mixing | Independent CMY color mixing system | Independent CMY color mixing system |
| CTO | Linear CTO 2500K–6500K | Linear CTO 2500K–6500K |
| Prism | Rotating 5-facet prism | Rotating 5-facet prism |
| Gobo Wheel | 7 interchangeable gobos + white spot (OD 22.9mm / ID 14mm / thickness 1.1mm) | 7 interchangeable gobos + white spot (OD 22.9mm / ID 14mm / thickness 1.1mm) |
| Framing System | 4 independent framing blades, individually dimmable, 90° rotation | 4 independent framing blades, individually dimmable, 90° rotation |
| Frost | 0–100% linear frost | 0–100% linear frost |
| Iris | 6%–100% smooth adjustment | 6%–100% smooth adjustment |
| Zoom | 4.8°–50° linear zoom | 4.8°–50° linear zoom |
| Dimmer | 0–100% linear dimming | 0–100% linear dimming |
| Strobe | Up to 25Hz, random & pulse strobe | Up to 25Hz, random & pulse strobe |
| Pan | 540° (16-bit) | 540° (16-bit) |
| Tilt | 270° (16-bit) | 270° (16-bit) |
| IP Rating | IP66 | IP66 |
| Operating Temperature | 0°C – 45°C | 0°C – 45°C |
| Product Dimensions | 41 × 27.7 × 66 cm | 41 × 27.7 × 66 cm |
| Net Weight | 28 kg | 28 kg |
| Packing Dimensions | 50.5 × 36.5 × 79.5 cm | 50.5 × 36.5 × 79.5 cm |
| Gross Weight | 32 kg | 32 kg |
3. Key Features & Selling Points
YN-LP700IP
- IP66 Weatherproof Rating — Fully sealed housing withstands rain, dust, and humidity; designed for permanent outdoor installation and touring festivals without weather covers.
- 600W High-Output LED Engine — Exceptional brightness with a 20,000-hour lifespan, reducing lamp replacement costs and maintenance downtime.
- Dual CRI Modes — Switch between Ra > 70 (maximum output) and Ra > 90 (high color fidelity) to suit broadcast, TV studio, or high-end event requirements.
- Precision 4-Blade Framing System — Independently controlled shutter blades with 90° rotation enable accurate beam shaping, ideal for architectural and stage framing.
- Full Feature Set in a Compact Body — CMY mixing, CTO, 5-facet rotating prism, 7 interchangeable gobos, linear frost, iris, and 4.8°–50° zoom — all in a 28 kg IP-rated fixture.
- 16-bit Pan/Tilt — Ultra-smooth, silent movement with 540° pan and 270° tilt for precise positioning in any rig.
- Multiple Control Options — DMX512 / RDM / Auto / Master-Slave with 34/39/56 channel modes, compatible with all major lighting consoles.
- Rotatable Touch Display — 2.8" LCD touchscreen with 180° rotation and bilingual menu for easy setup from any mounting angle.
YN-LP1000IP
Includes all features above, plus:
- 850W High-Power LED Module — 42% more optical power than the 700W model, delivering superior throw distance and luminous intensity for large-scale venues.
- 1150W Stadium-Grade Output — Suitable for large outdoor stages, concert tours, and architectural façade lighting where maximum brightness is critical.
- Identical Compact Footprint — Same 28 kg body and 41 × 27.7 × 66 cm dimensions as the 700W model — upgrade output without changing rigging hardware or flight cases.
- High-CRI Mode Ra > 90 — Professional color accuracy for broadcast, live TV, and high-end corporate events.
4. Applications
| Category | Scenarios |
|---|---|
| Outdoor Concerts & Festivals | Main stage lighting, touring festivals, outdoor live performances — IP66 ensures reliable operation in rain and dust. |
| Architectural & Façade Lighting | Building exteriors, monuments, bridges, hotel facades — the framing system precisely shapes light onto architectural surfaces. |
| Theater & Stage Productions | Professional theaters, drama stages, musicals — CMY + CTO + framing deliver accurate color and beam shaping for theatrical lighting design. |
| TV & Broadcast Studios | High-CRI mode (Ra > 90) ensures accurate skin tones and color reproduction for cameras. |
| Corporate Events & Galas | Award ceremonies, product launches, fashion shows — versatile color, gobo projection, and precise dimming. |
| Theme Parks & Attractions | Permanent outdoor installations, parade routes, themed area lighting — long LED lifespan and IP66 reduce maintenance. |
| Sports & Stadium Events | Opening/closing ceremonies, halftime shows — high-output models cover large distances. |
| Weddings & Luxury Events | Outdoor wedding receptions, garden parties — weatherproof reliability with elegant color mixing and gobo patterns. |
| Rental & Staging Companies | Touring-ready, robust construction, universal voltage (AC100–240V) for global rental inventory. |
