Available Variants: 230W(7R) / 350W(17R) / 371W(19R) / 421W(20R)

No.	Item	Parameters
1	Voltage	AC 90–235V, 50–60Hz (Wide Voltage)
2	Driver	600W Wide-Voltage LED Driver
3	Light Source	Imported OSRAM Lamp — 230W (7R) / 350W (17R) / 371W (19R) / 421W (20R)
4	Color Temperature	8000K
5	Color System	Color wheel: 14 colors + rainbow effect + frost function
6	Gobo System	Gobo wheel: 17 fixed gobos + 1 white open
7	Focus System	Electronic focus
8	Frost	Built-in frost function for soft beam effect
9	Strobe	Dual-motor independent strobe, 0.5–20 flashes/sec, adjustable speed
10	Pan/Tilt Motor	3-phase motors for high-speed stability and precise positioning
11	Dimming	0–100% linear dimming, smooth and flicker-free
12	Beam Angle	2°–5°
13	DMX Channels	20 channels or 24 channels (selectable)
14	Lens Diameter	160mm
15	Waterproof Rating	IP55
16	Control Modes	DMX512, Standalone, Master-Slave, RDM (Remote Device Management); address code configurable remotely via large-format controllers
17	Prism System	8-facet prism + (8+16)-facet prism (configurable per customer requirement)
18	Display	LCD display, 180° rotatable for flexible mounting orientation
19	Pan/Tilt Performance	High-precision 3-phase motors, accurate positioning, smooth movement, auto position calibration
20	Pan	540° rotation, 8/16-bit resolution with fine adjustment
21	Tilt	270° rotation, 8/16-bit resolution with fine adjustment
22	Cooling System	Physical convection cooling with software-optimized thermal management; rapidly dissipates internal heat, extends lamp life and reduces lumen depreciation; low-noise fan design with excellent performance
23	Installation	Floor standing / Hanging (truss mount)
24	Dimensions & Weight	360 × 310 × 600 mm (L×W×H); Net Weight: 20 kg; Gross Weight: 24 kg

Light Source Options (Variant Comparison)

Variant	Lamp Power	Lamp Type	Color Temp	Beam Angle
YN-BWP-230	230W	7R	8000K	2°–5°
YN-BWP-350	350W	17R	8000K	2°–5°
YN-BWP-371	371W	19R	8000K	2°–5°
YN-BWP-421	421W	20R	8000K	2°–5°

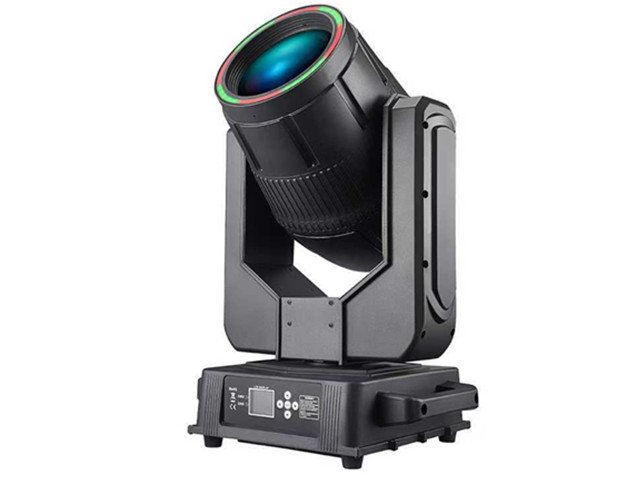

Product Description

Masterpiece of Engineering

With its premium exterior and massive light output, this waterproof beam moving head delivers a thick, punchy beam that
stands out in any outdoor environment. Every aspect — from optics and structure to industrial design — meets the highest standards.
Featuring cutting-edge high-brightness lamp technology, advanced optical engineering, and rigorous industrial design,
it ensures perfect execution of every lighting design concept.
