Product Overview

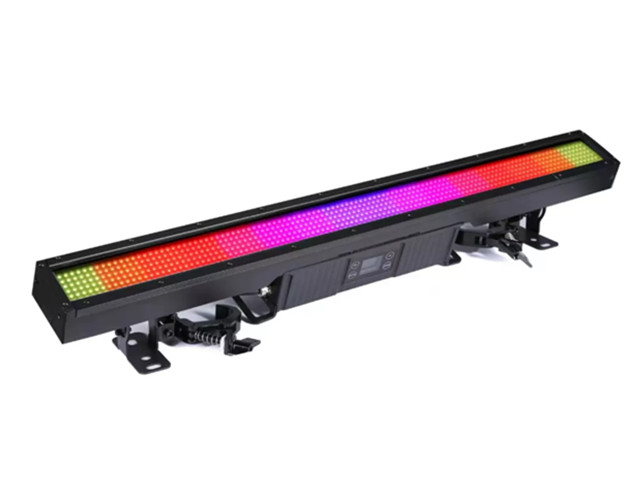

The YN-ST330IP is a high-output, weatherproof LED strip strobe engineered for professional outdoor and touring applications.
Combining 672 RGB LEDs with 112 cold-white LEDs in a compact 500 mm housing,
it delivers vibrant color mixing and blinding white strobe effects with independent zone control.
Rated IP66, it is built to perform in rain, dust, and extreme outdoor conditions.

Technical Specifications

Key Selling Points

1. 16-Zone RGB Independent Control — Color LEDs are divided into 16 individually addressable zones, enabling pixel-level chases, waves, and dynamic patterns.
2. 8-Zone White Light Independent Control — Cold-white LEDs split into 8 zones for precise strobe sweeps and segmented blinding effects.
3. Superior Color Mixing — High-density RGB array produces rich, saturated colors with smooth, even blending across the entire strip.
4. Independent Electronic Strobe / Atomization Effect — Strobe intensity and speed controllable independently of color output for layered, dynamic effects.
5. Built-In Quick-Splice System — Integrated splicing connector allows multiple units to be linked end-to-end in seconds, forming continuous LED walls or lines with no gaps.
6. IP66 Weatherproof Rating — Fully protected against powerful water jets and dust, suitable for permanent outdoor installation and touring in adverse weather.
7. Multi-Protocol Control — Native support for DMX512, RDM, Art-Net, and sACN, compatible with all major lighting consoles and networked control systems.
8. Flexible Channel Modes — 11 selectable DMX channel modes, from simple 15CH operation to full 117CH pixel-level control.
9. DMX Software Upgrade — Firmware upgradable directly through the DMX port, no disassembly required.
10. Loop-Through Power & Signal — Waterproof power and signal pass-through connectors reduce cable runs and simplify large-scale installations.

Application Scenarios

• Outdoor Concerts & Festivals — Main stage strobe and color effects, exposed to rain and dust
• Touring & Rental Productions — Fast rigging and splicing for touring shows, festivals, and one-off events
• Architectural Facade Lighting — Building exteriors, bridges, and landmark illumination
• Theme Parks & Amusement Parks — Outdoor ride lighting, parade floats, and nighttime spectaculars
• Nightclubs & Outdoor Bars — High-energy strobe and color effects for dance floors and outdoor venues
• Weddings & Special Events — Outdoor ceremony and reception lighting, weather-resistant reliability
• TV & Film Production — Outdoor shoots and location lighting requiring controllable strobe and color
• Sports Arenas & Stadiums — Pre-game shows, halftime entertainment, and fan zone lighting
• Brand Activations & Product Launches — Outdoor experiential marketing and pop-up events
• Permanent Outdoor Installations — Resorts, hotels, cruise ships, and public spaces
