Product Overview

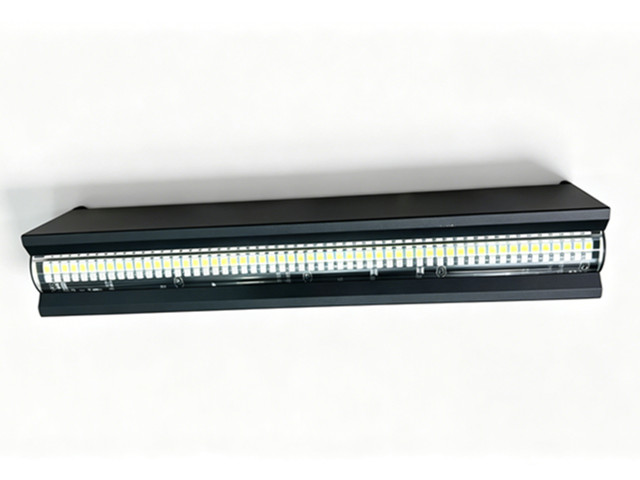

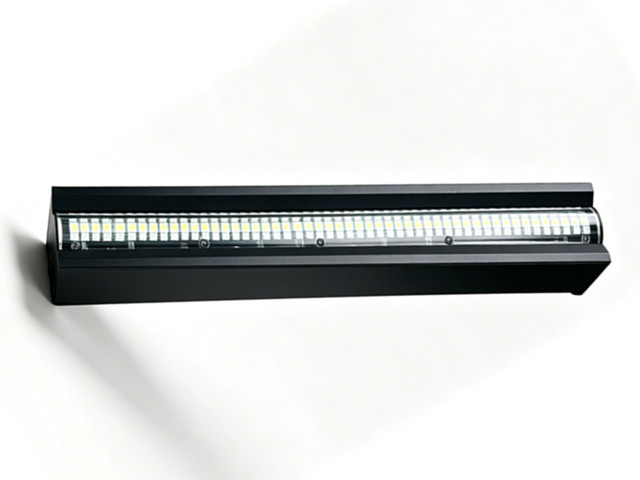

The YN-ST168-100 is a compact 100 W LED RGBW strobe bar featuring 112 high-brightness 5050 three-color RGB LEDs and 56 white LEDs. With 16 independently controllable RGB segments and 8 white segments, 32-bit ultra-smooth dimming, horse-running chase effects, color dyeing, and variable strobe up to 30 Hz, it delivers dynamic multi-effect lighting for stages, clubs, and events. Built-in RDM and four control modes make it flexible for both standalone and fully networked rigs.


Technical Specifications

Key Selling Points

1. 16 RGB + 8 White Independent Segments — 16 color segments and 8 white segments are individually addressable, enabling precise pixel-mapped chases, segmented strobe sweeps, and complex dynamic patterns.
2. 112 RGB + 56 White LEDs, Dual Light Engine — 112 high-brightness 5050 three-color LEDs for full-spectrum color mixing plus 56 dedicated white LEDs for clean, high-output strobe and wash effects in one compact fixture.
3. 32-Bit Ultra-Smooth Dimming — Industry-leading 32-bit dimming resolution delivers buttery-smooth, flicker-free brightness transitions with zero stepping or banding, even at very low intensity levels.
4. Horse-Running Chase Effect — Built-in horse-running (chase) effect creates dynamic moving light patterns across the 24 segments, ready to use out of the box or programmable via DMX.
5. Color Dyeing + Strobe / Flash — Combines smooth RGB color washing (dyeing) with variable strobe and flash effects, making it a versatile multi-function fixture rather than a single-purpose strobe.
6. Variable Strobe 1 – 30 Hz — Adjustable strobe frequency from subtle pulse to rapid 30 Hz flash, covering every effect from atmospheric flicker to high-impact blinding strobe.
7. Four Selectable Channel Modes — CH4 for simple operation, CH13 for enhanced RGBW control, CH56 for per-segment RGB control, CH65 for full per-segment RGBW pixel-level programming.
8. RDM Support — Remote Device Management enables address setting, configuration, and status monitoring directly from the console, simplifying setup in large installations.
9. Multiple Control Modes — DMX512, self-propelled auto, master-slave synchronization, and sound-activated beat response cover every operating scenario.

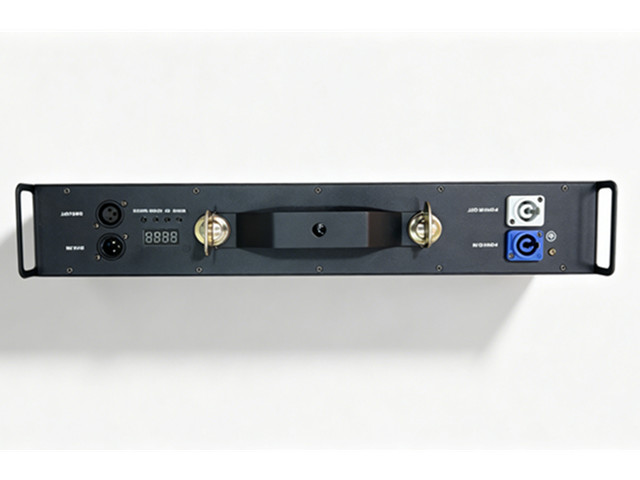

10. Wide Temperature Range & Metal Build — Operates reliably from -30°C to 50°C in a rugged black metal housing, with loop-through DMX and power connectors for easy daisy-chaining.

Application Scenarios

• Nightclubs, bars, and lounges
• Stage performances and theater productions
• DJ booths and mobile DJ setups
• Concert tours and live events
• TV and broadcast studios
• Event production and rental
• Architectural accent and cove lighting
• Exhibition booths and trade shows
• Fashion shows and product launches
• Themed events and immersive experiences
