Product Overview

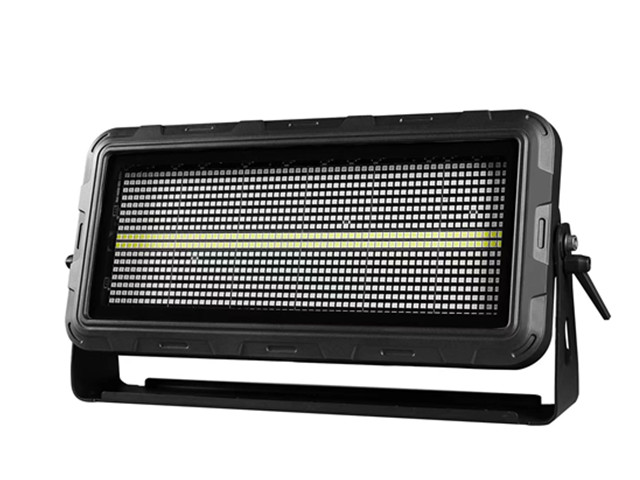

The YN-ST2412 combines 960 high-brightness 5050 RGB LEDs with 120 high-power 7070 cold-white LEDs in a rugged IP65 weatherproof housing.
Featuring 24 independently controllable RGB segments and 12 independently controllable white segments,
it delivers vibrant color mixing and blinding white strobe effects — built for outdoor concerts, touring productions,
and permanent architectural installations.

Technical Specifications

Key Selling Points

1. 24 RGB + 12 White Independent Segments — 24 color segments and 12 white segments are individually addressable, enabling layered pixel chases, segmented strobe sweeps, and complex dynamic patterns.
2. Dual LED Engine, 350 W Total — 960 RGB LEDs for full-spectrum color mixing plus 120 high-power 7070 white LEDs for blinding strobe output.
3. IP65 Weatherproof Rating — Protected against dust ingress and low-pressure water jets from any direction, suitable for permanent outdoor installation and touring in rain.
4. Four Control Modes + RDM — DMX512, self-propelled, master-slave, and voice control with full RDM support for remote configuration and monitoring.
5. Three Selectable Channel Modes — CH4 for basic operation, CH12 for enhanced RGBW control, CH86 for full per-segment pixel-level programming.
6. Variable Strobe 1–30 Hz — Adjustable strobe frequency from gentle pulse to high-impact blinding flash.
7. Extreme Temperature Tolerance — Reliable operation from -30°C to 50°C for winter tours and desert installations alike.
8. Loop-Through Power & Signal — Waterproof DMX and power pass-through connectors reduce cable runs and streamline large-scale outdoor rigs.
9. Robust Touring-Grade Build — 15.5 kg metal housing designed for the rigors of rental, touring, and permanent outdoor deployment.

Application Scenarios

• Outdoor concerts, festivals, and live events
• Touring and rental productions
• Architectural facade and building illumination
• Theme parks and amusement parks
• Outdoor weddings and special events
• Sports arenas and stadiums
• Outdoor nightclub and beach club venues
• Permanent outdoor installations (resorts, hotels, public spaces)
• Cruise ships and marine environments
• Brand activations and outdoor product launches
