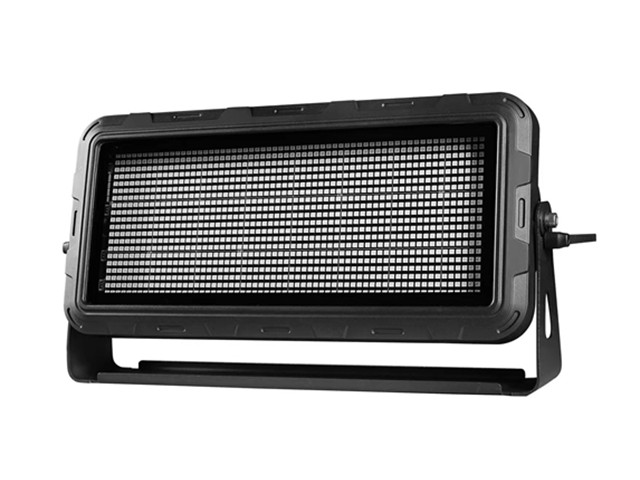

Product Overview

The YN-ST24 is a 24-segment individually controllable RGB LED strobe bar powered by 1,344 high-brightness 5050 RGB LEDs.
Supporting DMX512, self-propelled, master-slave, and voice-control modes with built-in RDM, it delivers flexible dynamic chases, smooth color mixing,
and variable strobe effects for professional stage and event environments.

Technical Specifications

Parameter	Specification
Model	YN-ST24
Voltage	AC 100–240V, 50/60 Hz
Power	32V / 35 W
LED Source	1,344 × 5050 RGB LEDs
Control Modes	DMX512, self-propelled, master-slave, voice control; RDM enabled
DMX Channels	CH3 / CH9 / CH72 (selectable)
Dimming	24-segment single-point control, 0–100% linear dimming
Operating Temperature	-30°C to 50°C
Strobe Frequency	1–30 Hz

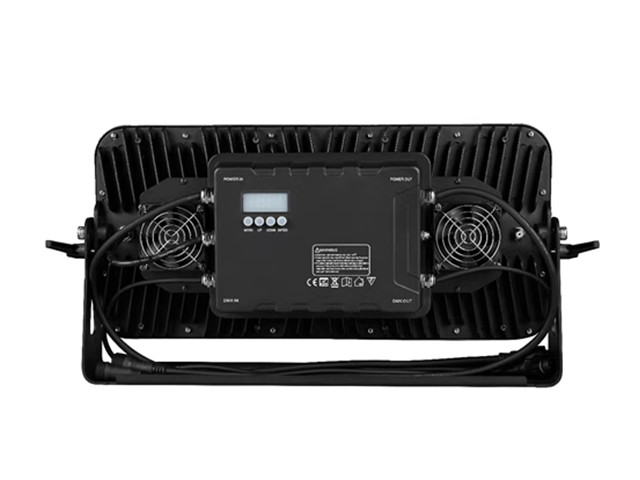

Connectors	DMX512 input / output, power input / output
IP Rating	IP65

Key Selling Points

1. 24-Segment Independent Pixel Control — Each of the 24 segments can be addressed individually for precise chases, waves, and pixel-mapped effects.
2. High-Density 5050 RGB Array — 1,344 LEDs produce rich, saturated color with smooth, even blending across the entire bar.
3. Four Control Modes — DMX512, self-propelled, master-slave, and voice control cover every operating scenario from standalone to fully networked rigs.
4. RDM Support — Remote Device Management enables address setting, configuration, and status monitoring directly from the console.
5. Three Selectable Channel Modes — CH3 for simple operation, CH9 for enhanced control, CH72 for full per-segment pixel programming.
6. Variable Strobe 1–30 Hz — Adjustable strobe frequency from subtle pulse to high-impact flash effects.
7. Wide Temperature Range — Operates reliably from -30°C to 50°C, suitable for challenging environments.
8. Loop-Through Power & Signal — Built-in DMX and power pass-through connectors simplify cabling in large installations.

Application Scenarios

• Nightclubs, bars, and lounges
• Stage performances and theater productions
• DJ booths and mobile DJ setups
• Concert tours and live events
• TV and broadcast studios
• Event production and rental
• Architectural accent and cove lighting
• Exhibition booths and trade shows
