Specifications

Parameter	Specification

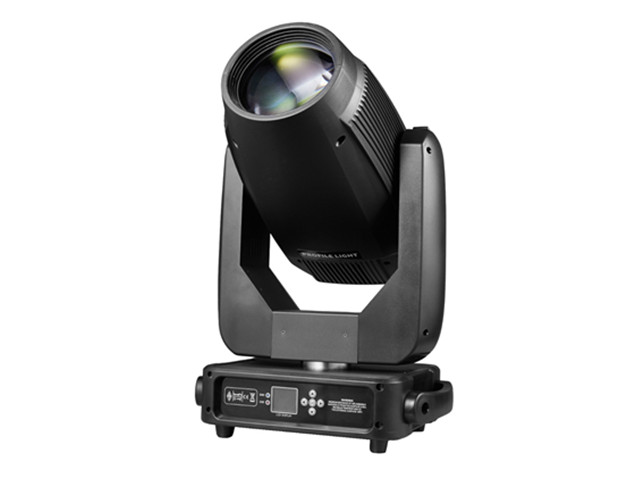

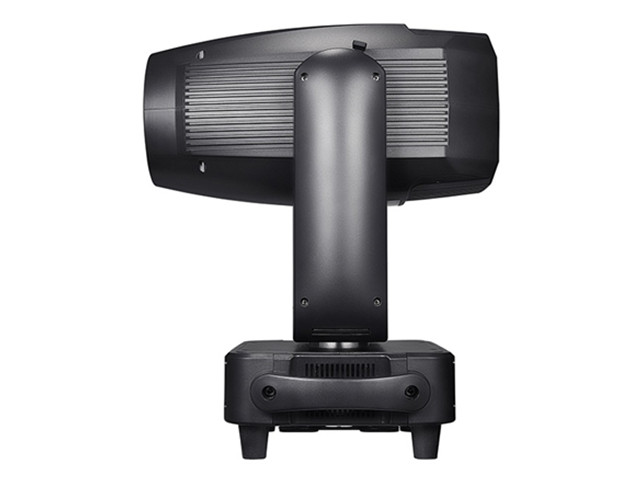

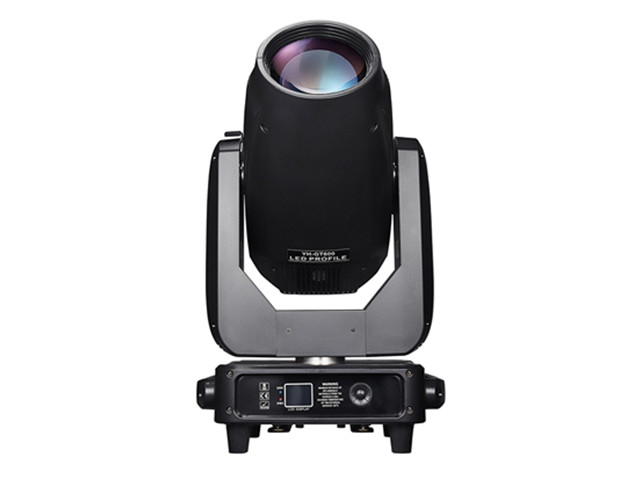

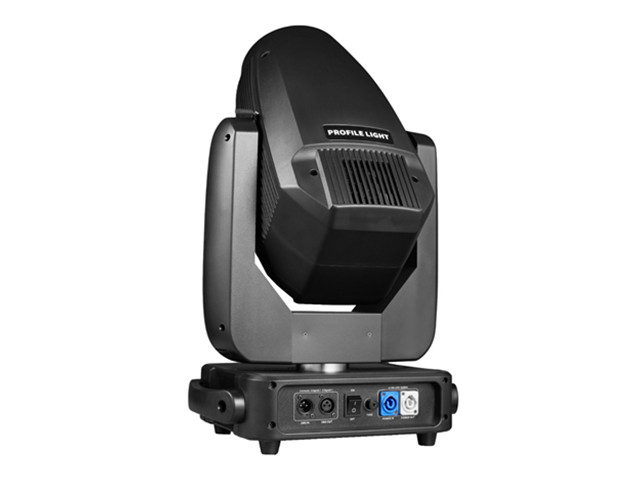

Product Name	LED 500W Moving Head Spot Light with CMY+CTO
Model No.	YN-BWS500
Input Voltage	AC 110V-220V / 50-60Hz
Light Source	500W White LED Module
Rated Power	480W
Color Temperature	8000K
CRI (Ra)	75
LED Lifespan	50,000 hours
Illuminance	80,000 lx @ 5m
DMX Channels	20 Channels
Pan Movement	540° (16-bit, Electronic Correction)
Tilt Movement	270° (16-bit, Electronic Correction)
Dimming	0-100% Linear Dimming
Focus	Linear Focus, 4m to 50m
Beam Angle	4°-35° Zoom
Frost Effect	Independent Frost Filter, Soft & Natural Spot
Strobe	0-30 fps, Variable Speed, Strobe Macro
Color Wheel	8 Colors + White, Half-Color Function
Color Mixing System	Independent CMY + CTO Color Mixing
Fixed Gobo Wheel	12 Fixed Gobos + White Spot + Water Wave Effect
Rotating Gobo Wheel	7 Glass Gobos, Independent Forward/Reverse Rotation
Prism System	6-Facet Prism + 8-Facet Prism, Independent Forward/Reverse Rotation
Macro Functions	Console Reset, Auto Run, Master-Slave
Display	LCD Display, Button Operation
Control Signal	Standard DMX512, RDM Supported, Online Firmware Upgrade, DIP Switch Addressing
Cooling System	Axial Fan Enhanced Cooling
Safety Protection	Electronic Temperature Control Overheat Protection, Auto Power-Off on Overheat Failure
Housing Material	High-Temperature Resistant Plastic
Operating Temperature	-20°C ~ 40°C
Protection Rating	IP20
Net Weight	22.5 kg
Product Dimensions	38 × 27 × 65 cm (L × W × H)
Carton Dimensions	60 × 54 × 46 cm (L × W × H)

Key Features

500W High-Power LED Module — Delivers 80,000 lx at 5 meters with a 50,000-hour lifespan, providing exceptional brightness and long-term reliability for professional stages.

Independent CMY + CTO Color Mixing — Professional CMY color mixing system with CTO correction enables unlimited color creation, meeting the demands of theater, TV and concert lighting design.

Dual Gobo Wheels — 12 fixed gobos with white spot and water wave effect, plus 7 rotating glass gobos with independent forward/reverse rotation for rich, dynamic pattern projections.

Dual Prism System — 6-facet and 8-facet prisms with independent rotation create layered beam-splitting effects and stunning visual depth.

4°–35° Motorized Zoom — Smooth linear zoom transitions from a tight, piercing beam to a wide, even wash, adaptable to any venue size.

Linear Focus 4m–50m — Precision linear focus system maintains sharp gobo projection from 4 meters up to 50 meters.

8-Color Wheel with Half-Color — 8 colors plus white with half-color function enables fluid, seamless color transitions on stage.

Independent Frost Filter — Dedicated frost effect softens spot edges for natural, diffused wash coverage.

High-Speed Strobe 0–30 fps — Variable-speed strobe with macro function delivers punchy rhythmic effects synchronized to music.

16-bit Precision Pan & Tilt — 540° pan and 270° tilt with electronic correction ensure ultra-smooth, accurate movement and positioning.

RDM & DMX512 Control — Standard DMX512 with 20 channels, RDM support for remote address setting, fixture monitoring and online firmware upgrades.

Intelligent Thermal Protection — Electronic temperature control with auto power-off on overheat failure guarantees safe, uninterrupted operation.

Axial Fan Enhanced Cooling — Efficient axial fan cooling system maintains optimal operating temperature, protecting LED lifespan and output consistency.

---

Applications

Professional Concerts & Live Tours — 500W high output with CMY+CTO and dual gobos delivers the versatility and brightness required for touring and large-scale live performances.

Theaters & Drama Productions — Precise CMY color mixing, sharp rotating gobos and linear focus support professional theatrical lighting design and scene transitions.

TV Studios & Broadcasting — Stable 8000K color temperature and high CRI ensure clean, broadcast-quality key and fill lighting.

Nightclubs & Music Festivals — Dual prisms, high-speed strobe and dynamic beam effects create high-energy atmospheres for clubs and festival stages.

Corporate Events & Product Launches — Elegant pattern projections, brand-color washes and customizable themes elevate keynote stages and exhibition halls.

Weddings & Gala Dinners — Soft wash, romantic gobos and unlimited color options set the perfect mood for ceremonies and receptions.

Rental & Staging Companies — RDM-enabled, rugged design with efficient cooling supports fast deployment and easy fleet management for event production.

Theme Parks & Cultural Tourism Shows — Durable high-temperature housing and rich visual effects suit themed shows, parades and immersive attractions.
