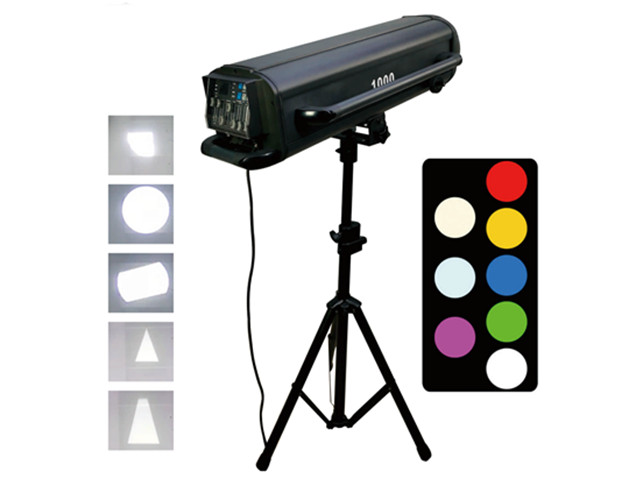

IP65 1000W LED Profile Follow Spot

1. Model Numbers (6 SKUs)

#	Model	Total Power	Light Source	Throw Distance
1	FSF-330W	500W	OSRAM LED 300W	30–70 m
2	FSF-400W	600W	OSRAM LED 400W	50–80 m
3	FSF-600W	880W	OSRAM LED 600W	80–150 m
4	FSF-880W	Not specified	LED Module 880W	100–180 m
5	FSF-1000W	1200W	LED Module 1000W	120–200 m
6	FSF-1200W	1350W	LED Module 1200W	120–220 m

2.1 Shared Specifications (All 6 Models)

Parameter	Specification
Frequency	50Hz – 60Hz
Voltage	AC 110V – 240V (Wide Voltage)
IP Rating	IP56 (Dust-protected / Powerful water jets)
DMX Channels	16 CH (DMX512) — includes framing control
Beam Angle	5° – 18° (Manual Zoom)
Color System	2 Color Wheels · 5 Colors + White (Red, Yellow, Blue, Green, Magenta)
Color Temperature	3200K / 4500K / 5600K / 6500K (Warming & Cooling Filters)
Dimming	0 – 100% Linear Electronic Dimming
Shutter	Open / Close Shutter
Strobe	Variable Strobe Effect
Iris	Electronic Adjustable Aperture
Focus	Stepless Linear Electronic Focus
Zoom	Manual Zoom (5°–18°)
Framing	8-Way Framing Shutters — precision beam shaping from 8 directions
Wooden Crate	1080 × 520 × 430 mm · Fixture 42 kg + Bracket 5 kg

2.2 Per-Model Specifications

Parameter	FSF-330W	FSF-400W	FSF-600W	FSF-880W	FSF-1000W	FSF-1200W
Total Power	500W	600W	880W	—	1200W	1350W
Light Source	OSRAM LED 300W	OSRAM LED 400W	OSRAM LED 600W	LED Module 880W	LED Module 1000W	LED Module 1200W
Throw Distance	30–70 m	50–80 m	80–150 m	100–180 m	120–200 m	120–220 m
Beam Angle	5°–18°	5°–18°	5°–18°	5°–18°	5°–18°	5°–18°
DMX Channels	16 CH	16 CH	16 CH	16 CH	16 CH	16 CH

2.3 Flight Case Packaging (Per Model)

Precision Beam Shaping — 8 independently controlled framing blades cut the beam into rectangles, squares, trapezoids, or any custom shape — eliminate light spill onto unwanted areas
Clean Edge Definition — Sharp, straight beam edges for professional theatrical and architectural applications
Independent Blade Control — Each of the 8 blades adjusts position and angle via DMX for unlimited shaping possibilities
No More Gobo Workarounds — Shape the beam directly without relying on custom gobos — saves time and cost on custom patterns
Ideal for Stage & Screen — Precisely frame a performer, backdrop, or scenic element without bleeding light into the audience or off-stage areas
