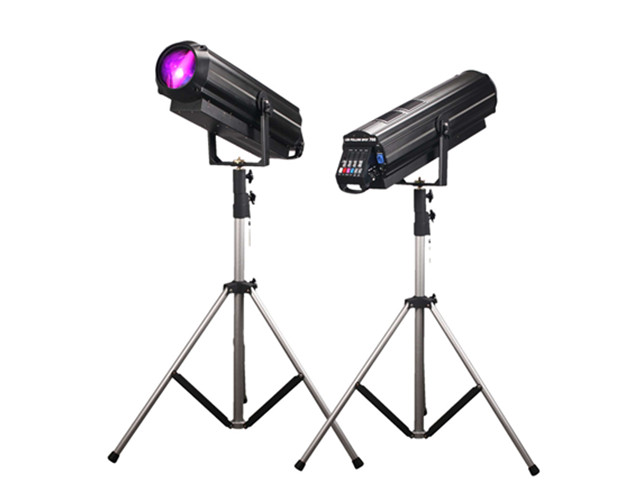

LED Follow Spot Light 700W
- PID：YN-FS700
- Wechat：13435630187
- Phone: 13435630187
- Tel: 13435630187
- Email: business@yinuolight.com
- FEEDBACK
1. Model Number
| Model | Total Power | Light Source | Throw Distance | IP Rating |
|---|---|---|---|---|
| FS-700 | 800W | LED Module 700W (Imported Chip) | 10–60 m | Indoor (Non-waterproof) |
2.1 Electrical & Optical
| Parameter | Specification |
|---|---|
| Power Supply | AC 220V – 240V / 50Hz – 60Hz |
| Total Power Consumption | 800W |
| Light Source | LED Module 700W · Imported LED Chip |
| LED Lifespan | 25,000 hours |
| Native LED Color Temperature | 8000K |
| Color Temperature Options | 3200K / 4500K / 6500K (via CT filters) |
| Color Rendering Index | CRI > 90 |
| Beam Angle | 4.5° – 15° |
| Throw Distance | 10 – 60 m |
| Dimming | 0 – 100% Linear Electronic Dimming |
| Zoom | Linear Electronic Zoom |
| Focus | Linear Electronic Focus |
| Iris | Fader-controlled adjustable aperture · Manual sharpness adjustment |
| Strobe | 1 – 11 flashes / second (variable) |
| Lamp Control | One-touch ON/OFF · Restart interval ≥ 10 seconds after power off |
2.2 Color System
| Parameter | Specification |
|---|---|
| Colors | White + 3 Colors (Red, Magenta, Blue) |
| Color Temperature Filters | Warming filter (3200K/4500K) · Cooling filter (6500K) |
| Native LED CCT | 8000K |
| CRI | > 90 |
2.3 Thermal & Protection
| Parameter | Specification |
|---|---|
| Cooling System | 6 × 8mm copper heat pipes + 132 large-area aluminum cooling fins |
| Thermal Design | Efficient heat conduction ensures minimal lumen depreciation and extended LED lifespan |
| Protection | Over-temperature protection · High-voltage trigger protection |
| Housing | New aluminum alloy design · Curved arc body — elegant and robust |
2.4 Mechanical & Packaging
| Parameter | Specification |
|---|---|
| Fixture Dimensions | 787.4 × 193 × 220 mm |
| Fixture Net Weight | 17.2 kg |
| Bracket | High-load, premium-design bracket · Easy installation · Improves work efficiency |
| Carton (Fixture) | 93 × 35 × 32 cm · 18.3 kg (incl. fixture) |
| Carton (Bracket) | 102 × 17 × 17 cm · 6.15 kg (bracket only) / 6.7 kg (incl. carton) |
| Flight Case Dimensions | 1150 × 460 × 420 mm |
| Flight Case Weight | 20.4 kg |
| Flight Case Total Weight | 43.75 kg (incl. fixture + bracket + case) |
3. Key Selling Points
