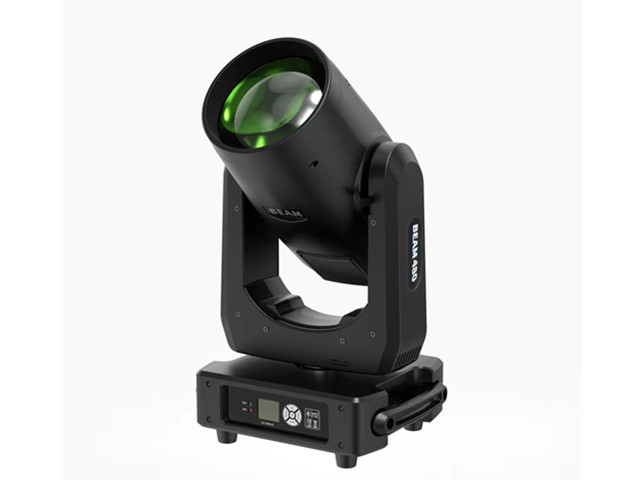

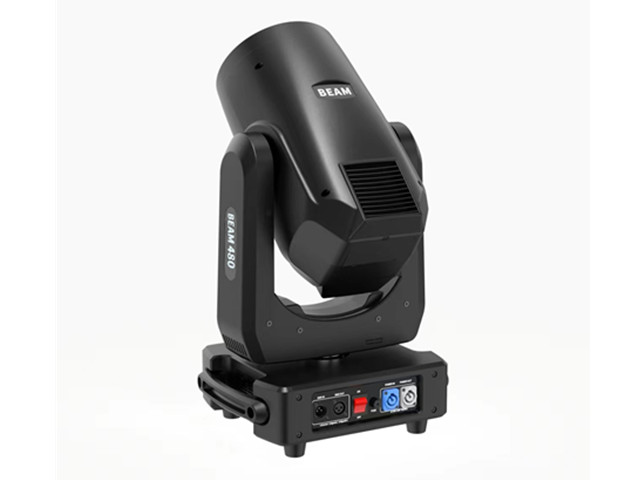

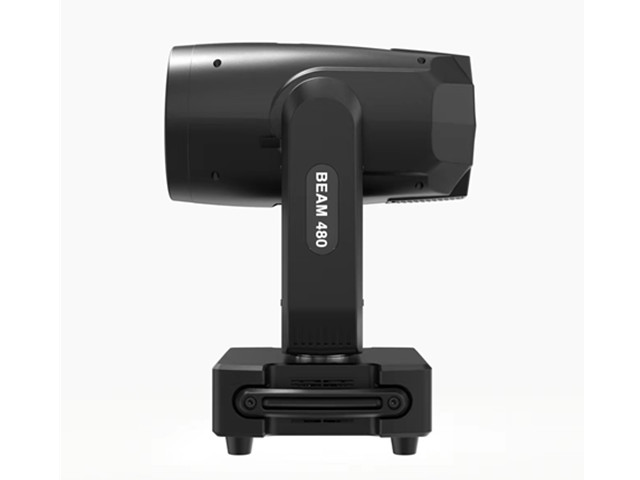

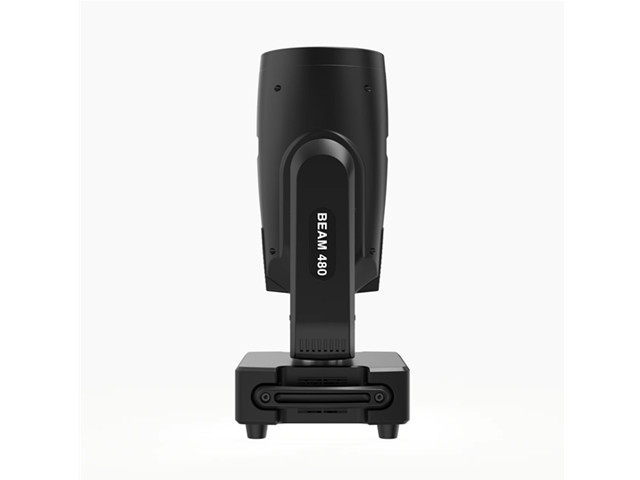

480W Moving head beam light
- PID：YN-M480
- Wechat：13435630187
- Phone: 13435630187
- Tel: 13435630187
- Email: business@yinuolight.com
- FEEDBACK
Power Supply: AC 100-240V, 50/60Hz, AC/DC Switching Power Supply
Rated Power: 700W
Light Source: 420W Philips / Ushio Original Lamp
Light Parameters: Luminous Flux 7950lm, Color Temperature 8500K, Beam Aperture 180mm
Ballast: Electronic Inductive Ballast
Control Mode: DMX512 / WDMX / Auto-run
DMX Channel: 16CH
Display System: LCD dot-matrix display with 4 tact switches, supports 180° flip display
Color Wheel: 14 color chips + white light, adjustable rotation speed, with bidirectional flowing water and rainbow dynamic effects
Gobo Wheel: Fixed gobo wheel, 14 gobo patterns + white light
Prism System: 48-facet honeycomb prism + 12-facet prism. Dual prisms are stackable, with independent bidirectional rotation and adjustable rotation speed
Focus System: Linear electric focusing, adjustable focal range from near to far
Atomization Effect: Independent atomization function with adjustable speed
Dimming & Strobe: 0-100% mechanical dimming; 1-12FPS adjustable mechanical strobe, built-in strobe macro function
Reset System: Equipped with photoelectric automatic reset system, which can automatically calibrate and reset after misoperation
Pan/Tilt Movement: Pan 540°, Tilt 270°; 8Bit/16Bit high-precision fine-tuning, with automatic precision error correction function
Protection Function: Overheat protection
IP Rating: IP20
Product Dimension: 280×260×650mm (L×W×H)
Packing Dimension: 580×460×420mm (L×W×H)
Net Weight: 17.5KG
Gross Weight: 19KG
